DFL400 Floor Conveyor

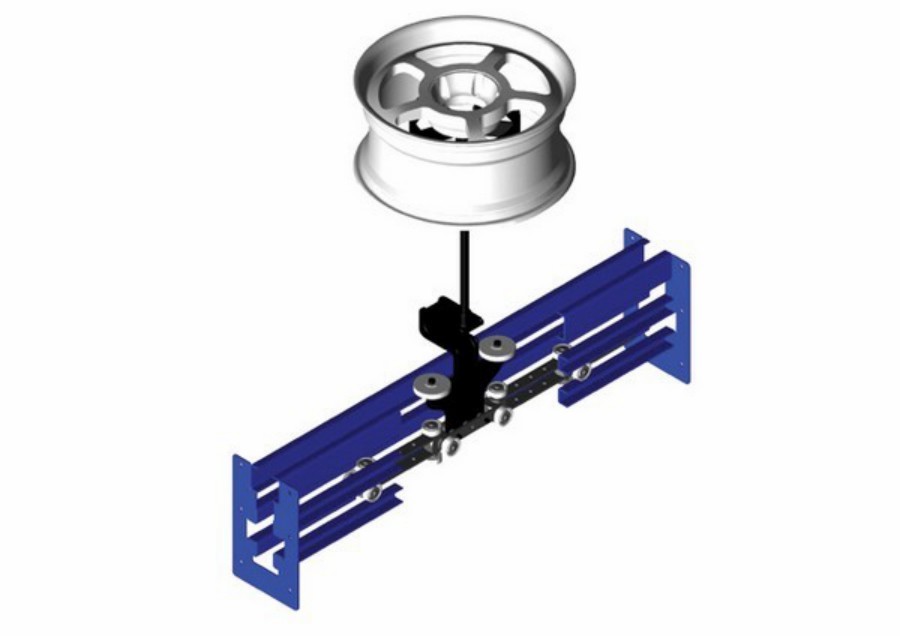

The system includes two layers of tracks, the lower track uses an XF-400 conveyor, and the upper track is a two-wheel guide rail for the trolley, which is installed on the XF-400 chain with a pitch of 200 or an integer multiple of 200 (minimum pitch 200). The trolley is equipped with a C-type hook to prevent conveying contamination when passing through the paint and powder spraying room.
The trolley can be equipped with a rotating device, with two options: a continuous rotating device and a 4×90° automatic rotating device.
Technical parameters
| Model | DPF300/250-50 |
| Trolley bearing rail | 77×52 C-type steel rail |
| Ultimate tensile load of traction chain | 50000Kg |
| Chain pitch | 300mm, 250mm |
| Single vehicle load | ≤50Kg |
| Allowable tension | 500Kg |
| Minimum turning radius | 600mm |
| Operating speed | ≤10m/min |
| Traction rail | 80×75×4 |
